In the rapidly evolving semiconductor industry, chip miniaturization and performance optimization are crucial. One packaging technology that meets both demands is the Wafer Level Chip Scale Package (WLCSP). WLCSP enables semiconductor manufacturers to produce smaller, thinner, and highly reliable chips, making it ideal for mobile devices, IoT applications, and high-performance computing. Understanding WLCSP is essential for engineers, designers, and supply chain professionals who want to stay at the forefront of chip innovation.
1. Wafer Level Chip Scale Package (WLCSP) definition

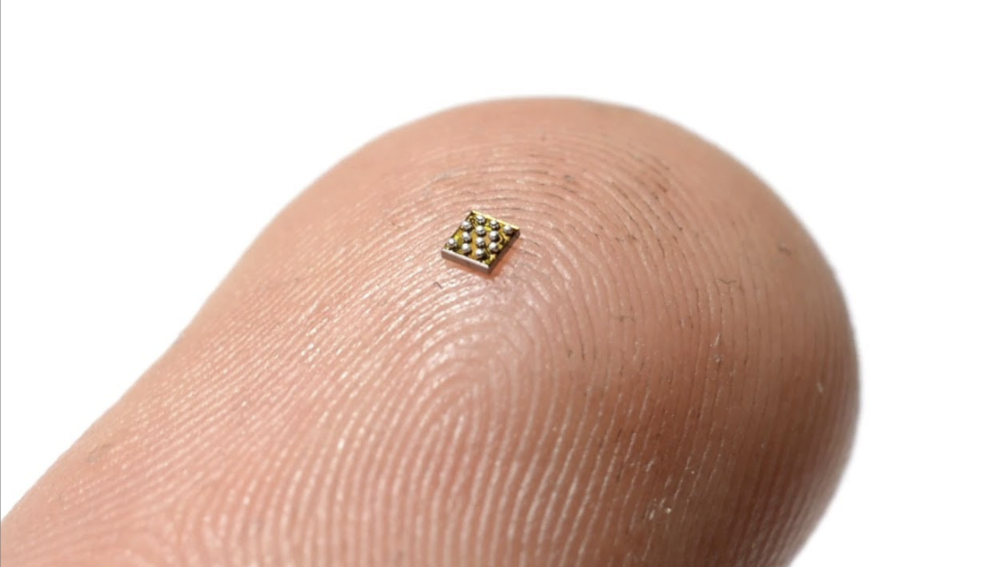

Wafer Level Chip Scale Package (WLCSP) is a packaging method that encapsulates integrated circuits (ICs) directly at the wafer level, rather than using the traditional packaging process after the wafer has been diced into individual dies. This technology enables the integration of packaging and electrical interconnection functions directly on the wafer, thereby minimizing the overall package size while enhancing the electrical and thermal performance of the chip.
From a technical perspective, the Wafer Level Chip Scale Package (WLCSP) process includes the following key stages:
- Redistribution Layers (RDL): This step involves redistributing the electrical connections on the die surface, allowing the I/O pad locations to be rearranged for compatibility with the printed circuit board (PCB) layout.
- Solder Ball Formation: Solder balls are formed on the redistributed pads, enabling the chip to be directly mounted onto the PCB using surface-mount technology (SMT).
- Encapsulation/Passivation: A protective layer is applied to ensure the mechanical, electrical, and thermal integrity of the die during operation.
Because WLCSP maintains the package size nearly identical to that of the die, it is classified as a true Chip Scale Package (CSP). Compared with Ball Grid Array (BGA) or laminate-based CSP technologies, WLCSP eliminates the need for bond wires or interposers, thereby reducing chip-to-PCB inductance, improving signal transmission, enhancing heat dissipation, and optimizing the overall device performance.
2. Technical Characteristics of Wafer Level Chip Scale Package (WLCSP)
- Miniaturization:
The package size is nearly identical to the die itself, minimizing the footprint on the printed circuit board (PCB).
This enables the design of ultra-compact electronic systems such as mobile devices, wearables, and IoT sensors where space efficiency is crucial.
- High Electrical Performance:
The reduced distance between the die and the PCB minimizes inductance, resistance, and parasitic capacitance, thereby improving signal integrity and high-frequency performance.
It also helps to reduce electromagnetic interference (EMI) and cross-talk, which is critical for high-speed circuits and high-bandwidth memory applications.
- Enhanced Thermal Management:
With the die mounted directly on the PCB, heat can dissipate more efficiently through a direct thermal path.This improves the chip’s thermal stability and reduces overheating
in high-performance applications such as AI computing, networking, and graphics processing.
- Cost Efficiency:
By eliminating additional substrate layers and secondary packaging steps, WLCSP reduces material consumption and manufacturing time.
This leads to a lower cost per die while maintaining high product quality and reliability.
3. Applications of Wafer Level Chip Scale Package (WLCSP)
Wafer Level Chip Scale Package (WLCSP) is widely applied in modern electronics due to its ability to miniaturize size, reduce weight, and enhance the electrical and thermal performance of chips. Some typical application areas include:
- Mobile Devices:
WLCSP enables chips to maintain a high I/O density within a limited space, reducing package thickness compared to traditional packaging technologies.
This supports the design of ultra-thin smartphones, tablets, and handheld devices, while enhancing processing performance and reliability under continuous use.
- Internet of Things (IoT) Devices:
With its compact form factor and low power consumption, WLCSP is an optimal choice for wearables, sensors, and IoT modules.
This technology ensures that integrated circuits can operate reliably in environments with limited space and energy constraints.
- High-Performance Computing (HPC):
In networking, artificial intelligence (AI), graphics, and GPU applications, WLCSP helps reduce inductance and parasitic capacitance, optimizing high-speed signal performance.
Its enhanced thermal management maintains chip performance sustainably under continuous and thermally demanding operation.
- Medical and Precision Industrial Devices:
Measurement, diagnostic, or automation control modules use WLCSP to integrate multiple functions within a limited area, ensuring device reliability and longevity in harsh operating environments.
4. Advantages and Limitations of Wafer Level Chip Scale Package (WLCSP)
Advantages:
- Miniaturization: The package size is nearly the same as the die, allowing for reduced PCB footprint and enabling ultra-compact electronic devices such as wearables, mobile devices, and IoT sensors.
- High Electrical Performance: Shorter distance between die and PCB reduces inductance, resistance, and parasitic capacitance, improving signal integrity and high-frequency performance while minimizing electromagnetic interference (EMI) and crosstalk.
- Enhanced Thermal Management: Direct die-to-PCB attachment provides efficient heat dissipation, enhancing thermal stability and reducing the risk of overheating in high-performance applications such as AI, networking, or graphics processing.
- Cost Efficiency: Eliminating additional substrate layers and extra packaging steps reduces material usage and manufacturing time, lowering the cost per die while maintaining quality and reliability.
Limitations:
- Mechanical Fragility: The small size and thin form factor can make WLCSP more sensitive to mechanical stress, requiring careful handling during assembly and operation.
Limited I/O Count: While suitable for many applications, extremely high I/O designs may exceed practical limits of WLCSP due to pad size and spacing constraints. - Thermal Dissipation Limits for High-Power Chips: For chips with very high power density, WLCSP may require additional thermal management solutions, such as heat sinks or advanced PCB design.
- Manufacturing Complexity: Precise formation of redistribution layers (RDL) and solder balls requires advanced equipment and process control, potentially increasing upfront investment for production.
5. Future Trends of Wafer Level Chip Scale Package (WLCSP)
In the context of the semiconductor industry continually evolving toward miniaturization, high performance, and high-density integration, Wafer Level Chip Scale Package (WLCSP) technology is expected to see expanded applications and technical advancements. Key trends include:
- 3D WLCSP:
Vertical stacking of multiple dies to increase computing density and I/O bandwidth while maintaining a small footprint.
This reduces signal path lengths between dies, lowering inductance and latency, thereby improving system performance in AI, HPC, and mobile device applications. - Advanced Redistribution Layer (RDL) Materials:
Use of low-loss dielectric layers and more efficient conductive redistribution to support high-frequency signal transmission.
This optimizes signal integrity in packages with high I/O pad density, while enhancing thermal management and mechanical reliability. - Integration with System-in-Package (SiP):
Enables combining multiple functions on a single die or module, including processors, memory, sensors, and passive components.
This reduces overall footprint, lowers power consumption, and maintains reliability and performance in modern electronic devices such as IoT gadgets, high-end smartphones, and wearable devices. - Innovation in Manufacturing and Testing Processes:
The combination of WLCSP with automated inspection and advanced test methodologies optimizes yield and reduces electrical-mechanical defect risks.
Manufacturers are developing laser-based micro-bump formation and precise soldering techniques to improve production quality and efficiency for mass-scale fabrication.
